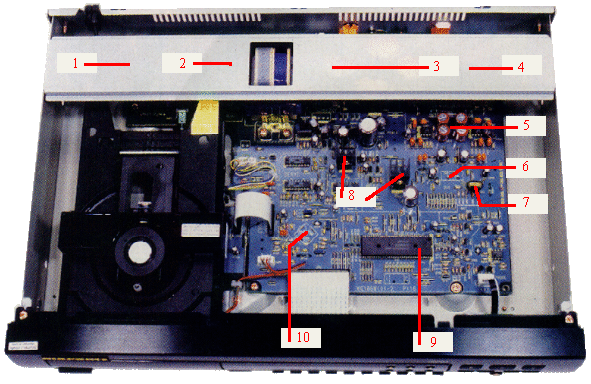

1. Chassis Cross-brace (SE and KI only)
2. Location of the PCB Positions for Mains Filtering (hidden by 1)
3. Location of the analog Supplies (hidden by 1)
4. Location of the "secret" HDAM's (Hyper Dynamic Amplifier Modules) (undercover by 1)
5. Location of the Filter-Circuit (NJM 2114 Op-Amps + PSU note the red electrolytic capacitors - they are Elna Starget/Cerafine types)
6. Location of the DAC (underneath the PCB)
7. Location of the main clock-crystal (note the rubber-grommet around it)
8. Location of the two digital Supplies (one for the Transport and one for the Signal Circuits)
9. Location of the system controlling Microprocessor
10. Location of the Decoder/Servo-driver Chip (underneath the PCB, will be different for the 53/63 Series)
